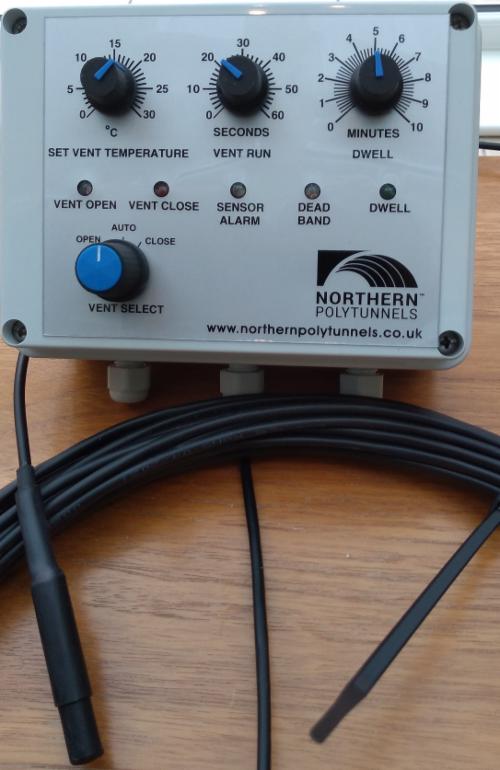

CONTROLLER FOR MOTORISED SPACE VENTING
S Temperature motorised vent range from
0 deg C to 30 deg C.
S Floating point control.
S Dead band of +/- 1deg C software
adjustable.
S Sophisticated control coupled with ease
of use.
S Adjustable vent run time from 3 to 60
seconds.
S Adjustable dwell time from1 minute to10
minutes.
S LED indication for:
Vent Open
Vent Close
Dead Band
Dwell
Sensor Alarm
S 3 position rotary switch for automatic
and manual control for opening
and closing vents.
S Sensor integral or remote.
S Sensor accurate to +/-1 DegC.
S Tight sensor interchangeability.
S Visual and audible indication of sensor
failure or over temperature conditions.
S Two vent motor driven outputs switched
240Vac live at 12 amps. One each
for either side of the poly tunnel or glass
house.
S Maximum load 1Kw inductive per motor.
S Maximum load 2Kw resistive.
S Connections for up to 2 vent motors open and close.
S Splashproof PVC enclosure.
